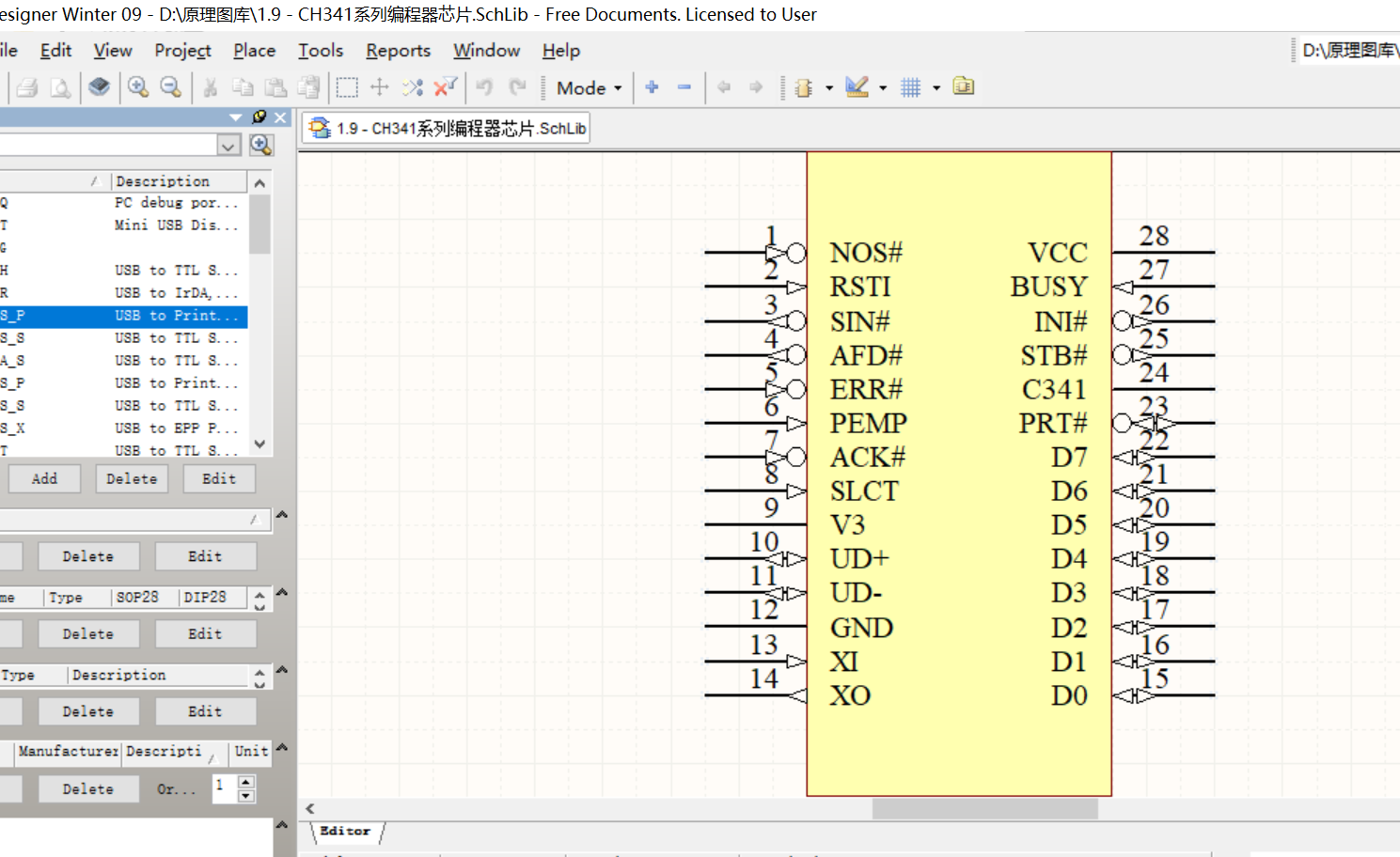

CH341系列编程器芯片usb转串口Altium Designer AD原理图库元件库
CSV text has been written to file : 1.9 - CH341系列编程器芯片.csv
Library Component Count : 56
Name Description
----------------------------------------------------------------------------------------------------
CH311Q PC debug port monitor
CH331T Mini USB Disk Controller
CH340G
CH340H USB to TTL Serial / UART, USB to IrDA
CH340T USB to TTL Serial / UART, USB to IrDA
CH340R USB to IrDA, USB to RS232 Serial
CH340S_P USB to Print Port / Parallel
CH340S_S USB to TTL Serial / UART, pin compatible with CH341
CH341A_S USB to TTL Serial / UART / I2C/IIC
CH341S_P USB to Print Port / Parallel
CH341A_P USB to Print Port / Parallel
CH341S_S USB to TTL Serial / UART
CH341S_X USB to EPP Parallel / SPI / I2C/IIC
CH341A_X USB to EPP Parallel / SPI / I2C/IIC
CH341T USB to TTL Serial / UART / I2C/IIC
CH345T USB to Midi
CH352L_M PCI to 8255 mode 2 Parallel for MCU and 16C550 UART / IrDA
CH352L_P PCI to Print Port / Parallel and 16C550 UART / IrDA
CH352L_S PCI to Dual 16C550 UART, TTL Serial*2 / IrDA*1
CH362L PCI Device / Slave only for RAM / Expansion ROM
CH364F Member of CH364 chipsets
CH364P PCI Device / Slave Embedded Flash ROM, for Expansion ROM
CH365P PCI Device / Slave, for I/O port or RAM / ROM
CH372T USB Device / Slave for MCU, Parallel
CH372A USB Device / Slave for MCU, Parallel
CH372V USB Device / Slave for MCU, Parallel
CH374S USB Host & Device / Slave for MCU, parallel / SPI
CH374T USB Host & Device / Slave for MCU, parallel / SPI
CH375S USB Host & Device / Slave for MCU, parallel / UART Serial
CH375A USB Host & Device / Slave for MCU, parallel / UART Serial
CH375V USB Host & Device / Slave for MCU, parallel / UART Serial
CH411G FDC MFM encode and decode
CH421A Dual port buffer
CH421S Dual port buffer
CH423D I2C/IIC I/O expander, 16 GPO + 8 GPIO, 128 LEDs Drive
CH423S I2C/IIC I/O expander, 16 GPO + 8 GPIO, 128 LEDs Drive
CH423D_D I2C/IIC I/O expander, 16 GPO + 8 GPIO, 128 LEDs Drive
CH423S_D I2C/IIC I/O expander, 16 GPO + 8 GPIO, 128 LEDs Drive
CH423G I2C/IIC I/O expander, 6 GPO + 5 GPIO
CH432Q Dual 16C550 UART with IrDA, parallel / SPI
CH432T SPI Dual 16C550 UART with IrDA
CH450K 6 Digits / 48 LEDs Drive & 8x6 Keyboard, I2C/IIC
CH450H 6 Digits / 48 LEDs Drive & 8x6 Keyboard, I2C/IIC
CH450L 8 Digits / 64 LEDs Drive & 8x8 Keyboard, I2C/IIC
CH451L 8 Digits / 64 LEDs Drive & 8x8 Keyboard, 4 Wire Interface, SPI
CH451S 8 Digits / 64 LEDs Drive & 8x8 Keyboard, 4 Wire Interface, SPI
CH451D 8 Digits / 64 LEDs Drive & 8x8 Keyboard, 4 Wire Interface, SPI
CH452L_2 8 Digits / 64 LEDs Drive & 8x8 Keyboard, I2C/IIC
CH452L_4 8 Digits / 64 LEDs Drive & 8x8 Keyboard, 4 Wire Interface, SPI
CH452S_2 8 Digits / 64 LEDs Drive & 8x8 Keyboard, I2C/IIC
CH452S_4 8 Digits / 64 LEDs Drive & 8x8 Keyboard, 4 Wire Interface, SPI
CH453S 16 Digits / 128 LEDs Drive, I2C/IIC
CH453D 16 Digits / 128 LEDs Drive, I2C/IIC
PCI 32Bit PCI Bus, simple / short card
PCI32 32Bit PCI Bus
USB USB Port
